CNLINKO DH-24 24 PIN Industrial Waterproof Connectors, IP68 Circular Connector, Hard Metal Anti-Interference Shell, Quick Plug Aviation Connector, M24 Panel Mount Flange Socket (24-Pin)
4.7 (111 items)
Limited Time Sale$14.39 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 218141222 | Release Date | 2026/05/03 | List Price | $9.60 | Model Number | 218141222 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- DH24 24 Pin Connector: This set includes the M24 male plug and female socket. The intuitive plug/unplug mechanism of this connector set ensures a hassle-free experience while maintaining a secure connection. Protection Level: IP68(Mated); Assembly Style:Soldering.

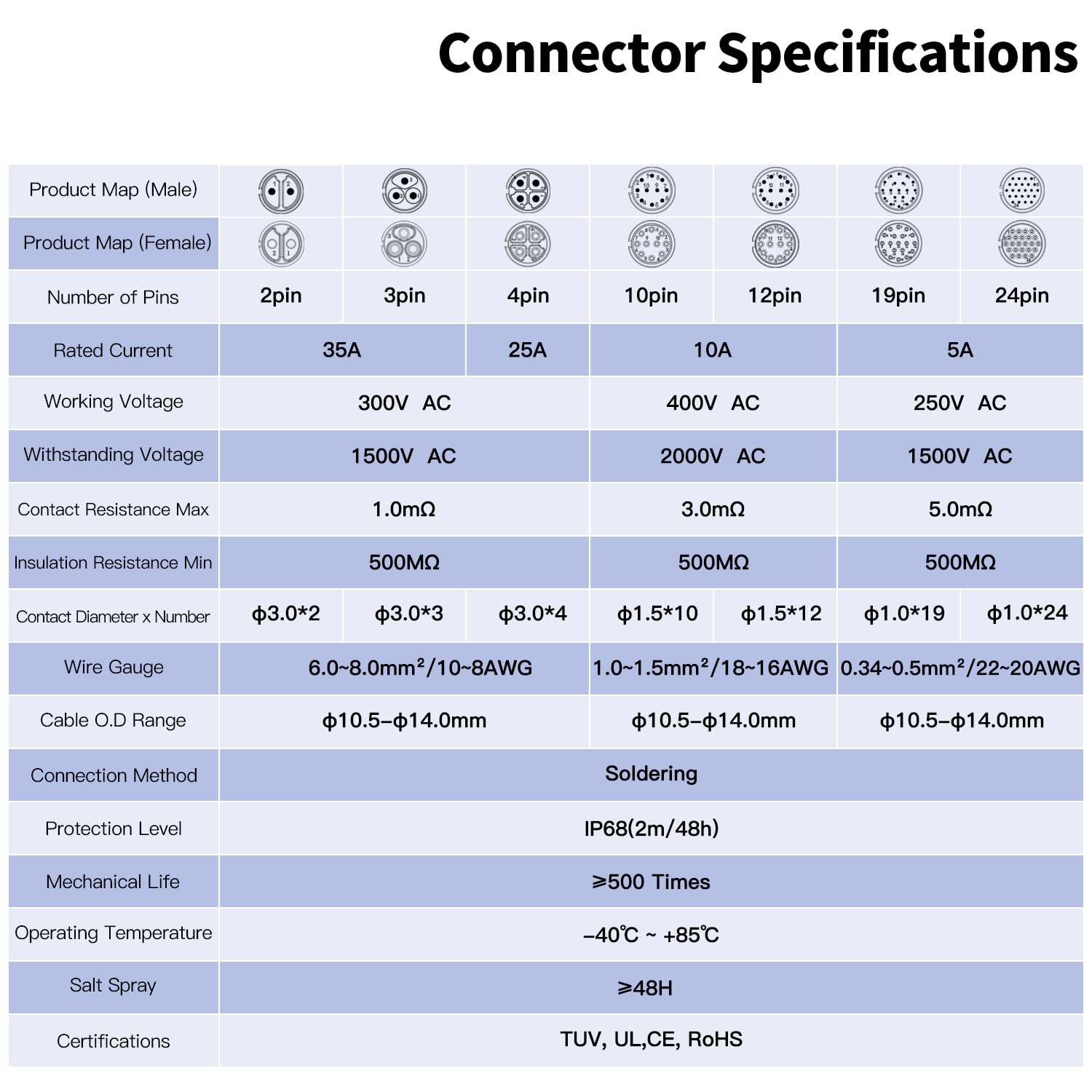

- Standard Specifications: Capable of supporting 0.34~0.5mm²/22~20AWG cable diameters recommended use ≤ Φ10.5~14.0mm. Contact Diameter × Number: Φ1.0x24. It handles 5A rated current, rated voltage 250V AC, withstands voltage 1500V AC. Contact resistance is ≤5.0mΩ, insulation resistance is >500MΩ.The connector is designed for over 500 cycles at temperatures ranging from -40°C to 85°C. Note: Avoid charging during insertion.
- Robust Protection: With an IP68 mated protection level, this set offers robust shielding against dust, moisture, and other environmental factors when the connectors are engaged. This means that even in harsh industrial settings or outdoor installations, your connections remain intact, reliable, and free from potential disruptions.
- Premium Material: the aviation connector's all-metal housing design provides good abrasion resistance and corrosion resistance. Copper Alloy and Gold Plating in the contact points ensure excellent conductivity. An additional layer of protection is provided by Silica Gel sealing.
- Versatile Applications: The DH24 connectors excels at high-current and signal handling, making it ideal for applications like solar photovoltaics, automation equipment, electronic devices, machinery, instrumentation, ships, vehicle equipment, lighting, cleaning equipment, and LED displays.
| Item Weight | 5.6 ounces |
|---|---|
| Manufacturer | CNLINKO |
| Item model number | DH-24-C/J24PE/SX-03-406A-AMZUS-03-003A |
| Package Dimensions | 5.67 x 5.51 x 1.57 inches |
